Scorpion 3D Venom Image of week 01

The Scorpion 3D Venom camera is the perfect choice for real-time FoodTech – these images shows the camera creates sprout images on the fly.

The 3D camera can be used for

  • 3D pose estimation
  • 3D shape verification
  • food grading
is-2018-0057-a 3dimage_sprout_venom-2
3D Sprout Image generated by the Scorpion 3D Venom Camera

The camera in question is the 6.0 MPixel 3D Venom color camera with a white LED strobe to create the 3D model.

The Scorpion 3D Venom camera with one 6 MP Color camera and two white LEDs

The 3D Venom camera uses a single camera to capture two images with disparity. The system works with a 12 bit dynamic range. The 3D FOV is approximately 125 x 115 mm with a depth resolution of 70 mm. The 3D Venom camera targets Industrial Automation – multiple camera can work together to make 360 degrees 3D models while the objects are moving.

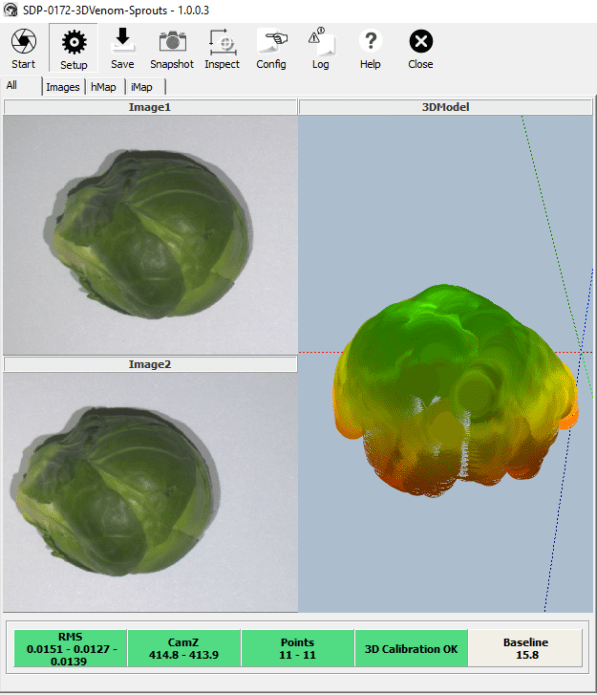

is-2018-0057-a 3dimage_sprout_venom-23d
The 3D Venom camera created the 3D model from the two high quality color images. The working distance is 415 mm and the baseline is 15.8 mm. The 3D resolution is 0.01 mm

Scorpion 3D Stinger™ for Robot Vision is designed to solve manufacturers’ classic challenge:  Picking parts from a conveyor belt, a pallet or a crate or Palletizing boxes on a pallet. Scorpion 3D Stinger™ captures images, identifies and locates the product and sends the id and 3D location to a picking robot. The Scorpion 3D Venom camera supplements the standard Scorpion 3D Stinger Camera with a baseline of 200 mm.

is-2016-0010 Scorpion 3D Stinger for Robot Vision - VIII

Scorpion 3D Stinger™ is a family of machine vision components and software products. They provide simple, state of the art and cost-effective building blocks for OEM and system integrators.
