Scorpion 3D Scanner Image of week 48

Thor

The Scorpion 3D Stinger Scanner is the perfect choice for automation – these images shows how the scanner makes a perfect of Euro-Pallet. The 3D scanner can be used for

  • picking,
  • measurement
  • surface inspection

The camera in question is the 2.0 MPixel 3D Scanner using Infrared (IR) Laser to create the 3D model. The camera is also equipped with 2D color 2.3 MP scanner making it possible to work in both IR and color space.  The FPGA base 3D scanner supports fast scan rates up 3500 fps and conveyor speeds exceeding 1.0 m/s. The system has 12 bit dynamic range and excellent edge detection making it very usable in challenging automation scenarios. The Scanner targets Industrial Automation – multiple scanner can work together to make 360 degrees 3D models while the objects are moving.

is-2018-0054-A 3DImage_Pallett-W47-2
The perfect 3D Image shows the top of the pallet illuminated by an infrared laser.
is-2018-0054-A 3DImage_Pallett-W47-4
The 2D color scanner provides white light images synchronised with the 3D IR Image – can be used to detect paint and other foreign materials
is-2018-0054-A 3DImage_Pallett-W47-3

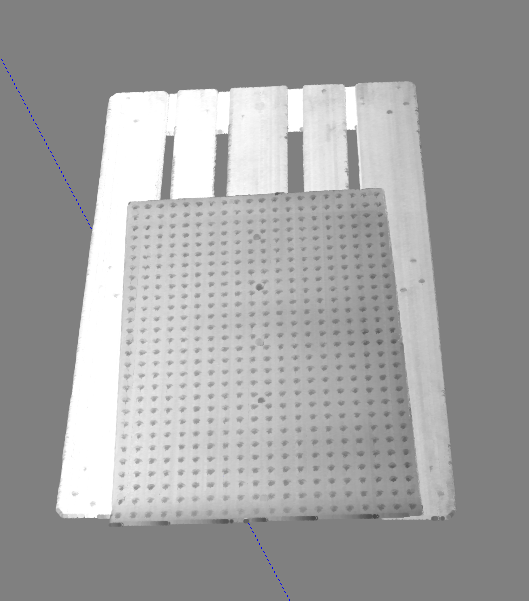

Foreign object or sheet detection can be performed in the IR  Image

Scorpion 3D Stinger™ for Robot Vision is designed to solve manufacturers’ classic challenge:  Picking parts from a conveyor belt, a pallet or a crate or Palletizing boxes on a pallet. Scorpion 3D Stinger™ captures images, identifies and locates the product and sends the id and 3D location to a picking robot.

Scorpion Vision Family - 1000px
Scorpion 3D Stinger Family Photo

Scorpion 3D Stinger™ is a family of machine vision components and software products. They provide simple, state of the art and cost-effective building blocks for OEM and system integrators.
