Scorpion 3D Image of week 02

The Scorpion 3D Stinger  technology is the perfect choice for real-time FoodTech – these 3D images can do chocolate 3D assembly verification on the fly.

is-2018-0059-a chocolate3d

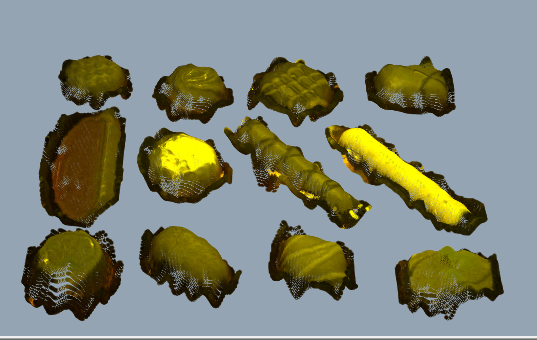

Scorpion 3D Venom camera image of a tray of chocolate

The 3D Venom camera can be used for

  • Identification and presence verification
  • 3D shape verification
  • Surface texture verification and 3D measurements
  • Empty box detection
  • 3D Box location

The camera in question is the 2.3 MPixel 3D Venom camera with a white LED strobe to create the 3D model. Working distance 488 mm – baseline 33.0 mm –> depth resolution estimated to 0.5 to 1 mm.

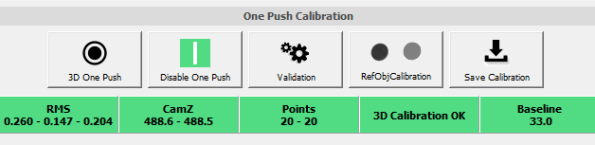

is-2018-0059-a chocolate3donepush

The 3D Venom camera uses a single camera to capture two images with disparity. The system works with a 12 bit dynamic range. The 3D FOV is approximately 300 x 300 mm with a depth resolution of 50 mm. The 3D Venom camera targets Industrial Automation – multiple camera can work together to make 360 degrees 3D models while the objects are moving.

is-2018-0059-a chocolate3dresample_imap

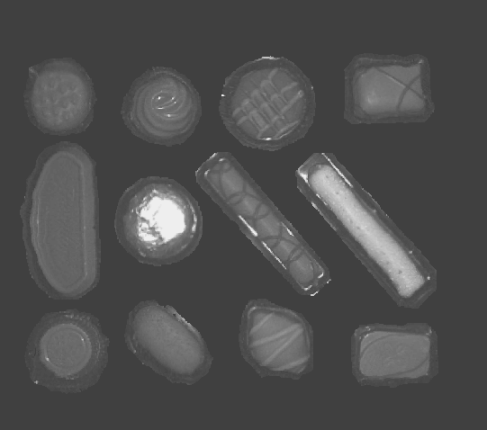

3D resampled 2D Image perfect for measurement
is-2018-0059-a chocolate3d_empty
A 3D image makes it easy to say : No chocolate 😦

Scorpion 3D Stinger™ for Robot Vision is designed to solve manufacturers’ classic challenge:  Picking parts from a conveyor belt, a pallet or a crate or Palletizing boxes on a pallet. Scorpion 3D Stinger™ captures images, identifies and locates the product and sends the id and 3D location to a picking robot. The Scorpion 3D Venom camera supplements the standard Scorpion 3D Stinger Camera with a baseline of 200 mm.

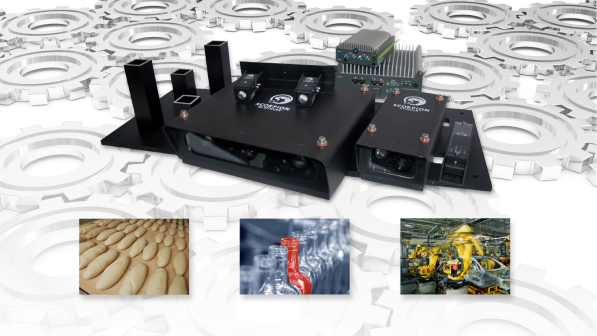

is-2016-0010 Scorpion 3D Stinger for Robot Vision - VIII

Scorpion 3D Stinger™ is a family of machine vision components and software products. They provide simple, state of the art and cost-effective building blocks for OEM and system integrators.
