TF3 – 2 to 10 times faster object location

scorpionxii-64x64

This is the second post in series of Scorpion Vision Software important tool improvements included in upcoming – Scorpion Vision XII.

We have used the  Scorpion Demo Profile – SDP-0079 Basic Robot Vision to verify and check the important improvement of TemplateFinder3. This tool provide object sub-pixel 2D object location in Scorpion. The both speed improvements and more robustness.

is-2016-0018-tf3resolvesperspective

TemplateFinder3 and PolygonMatch resolves perspective and skew for complex shapes

2D Object location is also important in our award winning 3D Stereo Vision solutions and our OEM products using low cost lenses and cameras.

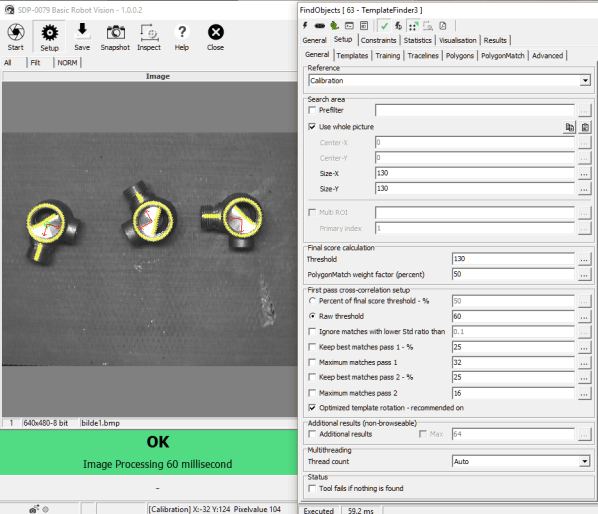

Before – Scorpion Vision XI locates three valves in 60 ms

is-2016-0018-tf3original

The original setup locates three valves with perspective in 60 ms on a 4th generation i/ computer with multithreading enables

Now – The improved TemplateFinder3 locates the valves in 11 ms – 6x faster

  • The update is easy to activate
    • only the section First pass cross-correlation section is updated.
  • The candidates in the first crosscorrelation steps are sorted and the user can specify how many candidates to keep.
    • In this setup 32 candidates are kept from the first and 16 from the second
  • The changes has the following basic properties
    • Easier to set up Tf3 using maximum limit
    • The tool can handles many more templates without slowing down
    • The tool has better real-time properties important in time critical systems
is-2016-0018-tf3faster

Easy to take advantage of the improved setup
