Is the box Empty? – A perfect solution using the Scorpion 3D Stinger MLaser Camera

Check video

Check video

Introduction

I have been working with Robot Vision for more than ten years. In the beginning we were happy when the could pick at all and the robot did not crash too often 🙂 When picking from boxes and pallets the there is always a last challenge to know that the layer or box is empty before you move it away – if you are wrong it hits hard when the robot moves non-empty box.

Scorpion 3D Stinger Starter KitScorpion 3D Stinger MLaser Camera

Our innovative and new solution is the Scorpion 3D Stinger MLaser Camera. The system consists of the following standard elements:

  • Scorpion Vision 3D Empty App
  • Compact PC running Scorpion Version X
  • Scorpion 3D Stinger MLaser Camera

The Scorpion 3D Stinger MLaser Camera is a combined with a 10 mW or 100 mW multiline laser that is projected onto the pallet or into the box.

is-2013-0008-A-MLaser-460

Read more about the Scorpion 3D Stinger Camera

3D Stinger Blog

Locate moving objects in 3D

The technology is not limited to robotics – the challenge also exists in all kind of box moving application where everything stops when the box or conveyor is not empty.

Scorpion 3D Stinger MLaser is able to operate with superior performance based on the following features:

  • Packaged in the Scorpion 3D Stinger Camera
    • Using stereo vision to locate the laserlines
  • Automatic and Accurate One Push 3D Calibration
  • Robust sub-pixel 2D location of laser lines
Empty Laser Image

The image shows an plane surface illuminated with 15 laser lines – the surface does not reflect the red laser very well

Locate laserlines FindPaths2D

The laser traces / paths are located with the Scorpion Tool Component FindPaths2D even with low contrast. Note that the outermost laserlines are not straight

  • Create a 3D Image in Real-time
    • The Scorpion Tool Components LocatePaths3D has significant features to handle missing laser points and folding challenges.
    • The sample shows a point cloud of 4489 points that is generated in 165 ms

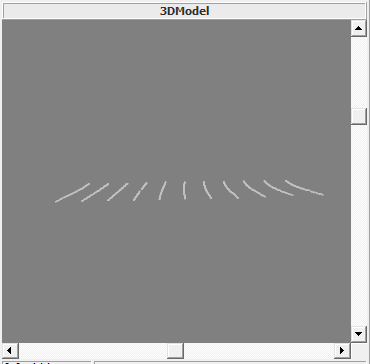

Empty_3DImage

The most accurate 3D image is created – the rms value for the 4889 3D points is 0.29 mm – given a 2D pixel resolution of 0.62 mm

The Scorpion 3D Stinger MLaser Camera is created to solve demanding applications in robotics and automation. It has a long list of features that make a difference in mission-crtitical applications. The 3D technology is available to OEMs and System Integrators.

Used to solve challenging 3D Bin Picking

YouTube ButtonWe have used the Scorpion 3D Stinger MLaser Camera to solve an innovative 3D Bin Picking solution for dog food packaging using an ABB robot.

With a fast vision cycle time of less  than 500 ms a robust strategy must be developed. The empty check is critical for 100% reliable operation because the robot must empty the bin before moving the box away.

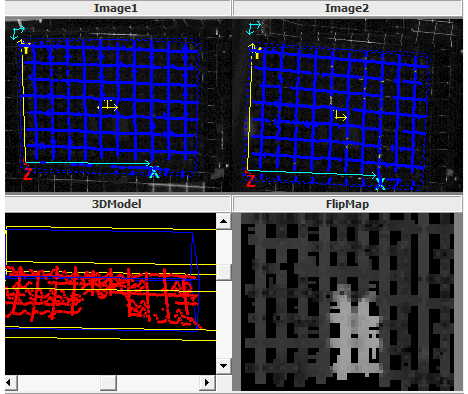

The animation shows the the two stereo-vision cameras, the 3D Model and the corresponding height map. There are images showing one item, two items and empty.

The box is verified 100% empty

The box is verified 100% empty before moving

Read more – Video – Innovative Real-time 3D Bin Picking
