Scorpion 3D Stinger Image of week 03

The Scorpion 3D Stinger Camera is the perfect choice for automation – these images shows how the camera make good image of sacks on a EUR-pallett.

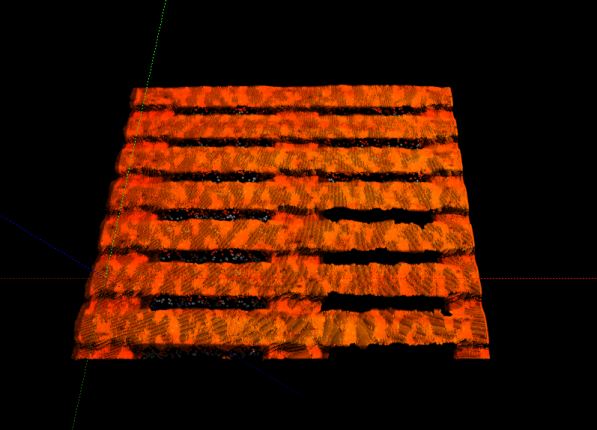

Euro-pallet with sack – 3D camera distance 2.500 mm

The Scorpion 3D Camera can @ distances from 500 mm to 5000 mm. The depth resolution in pallett picking is 1 mm. This is what you need to sack depallatizing and other demanding tasks.

  • picking,
  • object measurement
  • pallet assembly verification or damage assessment

The camera in question is the 2.3 MPixel 3D Camera using Infrared (IR) Laser to create the 3D model. The 3D camera can be used on a moving conveyor. Models supports up to 29 MByte camera to increase the system resolution. IR makes the system very robust and almost unaffected by ambient light.

The camera targets Industrial Automation – multiple 3D cameras can work together to make 360 degrees 3D models while the objects are moving.

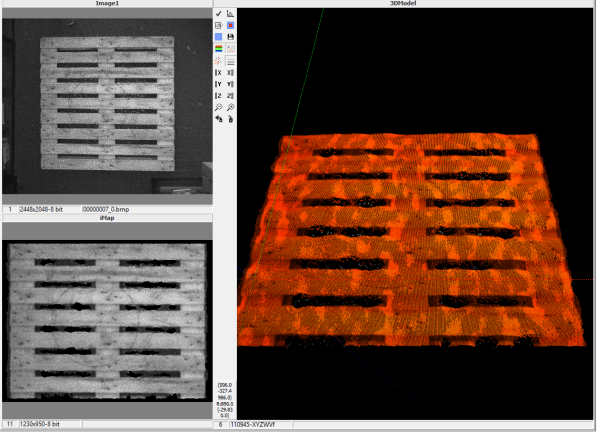

An important feature of the Scorpion 3D Stinger is to reliably verify empty pallet – important in 24-7 logistics operation
The steps in Scorpion Stinger – Image1 in 2D –> 3DModel –> iMap  is a 3D resampling provides a telecentric view -> this can be used for accurate 3D measurements

Scorpion 3D Stinger™ for Robot Vision is designed to solve manufacturers’ classic challenge:  Picking parts from a conveyor belt, a pallet or a crate or Palletizing boxes on a pallet. Scorpion 3D Stinger™ captures images, identifies and locates the product and sends the id and 3D location to a picking robot.

Scorpion Vision Family - 1000px
Scorpion 3D Stinger Family Photo

Scorpion 3D Stinger™ is a family of machine vision components and software products. They provide simple, state of the art and cost-effective building blocks for OEM and system integrators.
