Scorpion 3D Image of week 44

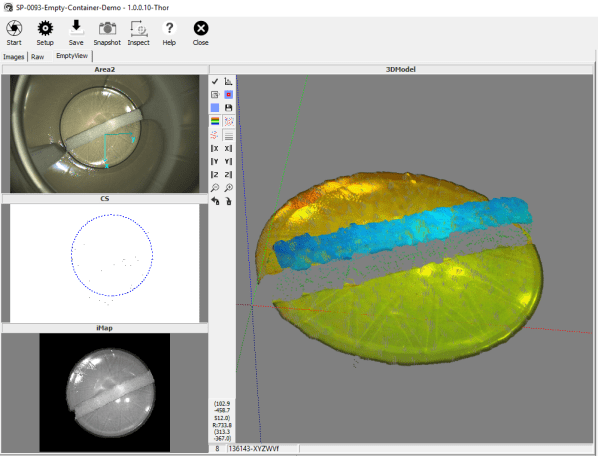

The Scorpion 3D Stinger Camera is the perfect choice for automation – these images shows how the camera can be used for an Empty Container application. The challenges are:

  • Reflective surface
  • Mirror images in the wall

All these challenges rules out all active projector options. The camera in question is a 2.3 MPixel Color camera with strobed white LED and a red RPP laser.

is-2018-0048-a 3dimage-4_w44

is-2018-0048-A 2DImage_W44

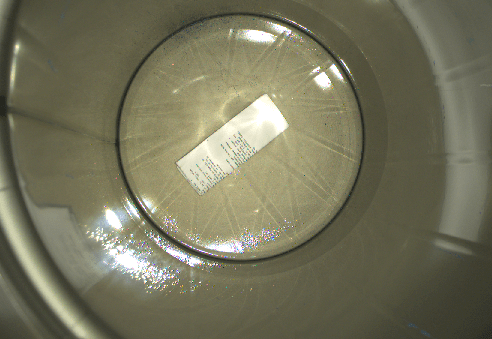

2D Image of the non-empty Container

The camera is unique with it’s 3D Global Shutter – it captures high quality 3D images while the objects are moving  – the Stinger Software provide a dense 3D images including intensity, hue and saturation information .

is-2018-0048-a 3dimage-8_w44

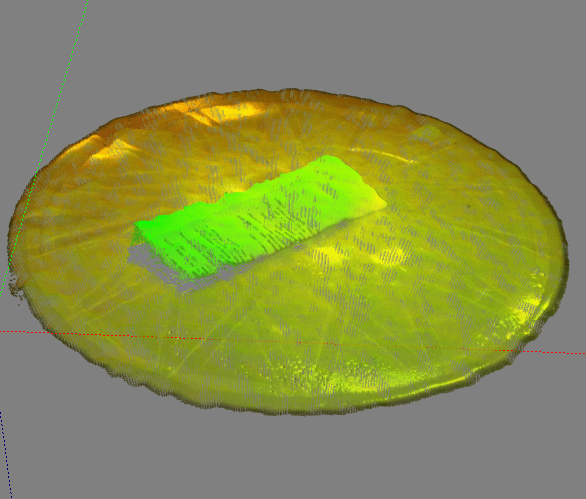

3D Image container with thin paper inside

Scorpion 3D Stinger™ for Robot Vision is designed to solve manufacturers’ classic challenge:  Picking parts from a conveyor belt, a pallet or a crate or Palletizing boxes on a pallet. Scorpion 3D Stinger™ captures images, identifies and locates the product and sends the id and 3D location to a picking robot.

Scorpion Vision Family - 1000px
Scorpion 3D Stinger Family Photo

Scorpion 3D Stinger™ is a family of machine vision components and software products. They provide simple, state of the art and cost-effective building blocks for OEM and system integrators.

Register for Scorpion and Tordivel News

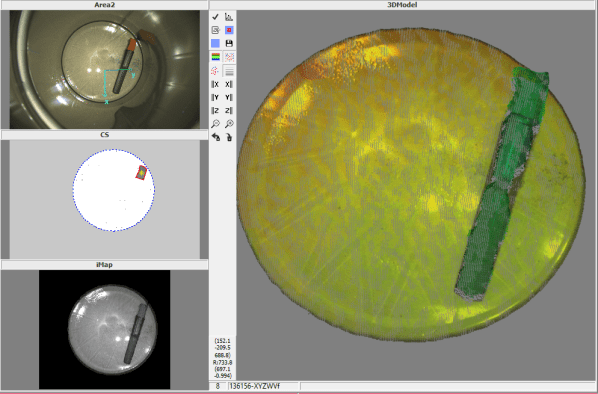

is-2018-0048-a 3dimage-5_w44
